Hongshan Zhang*, Zhubing Shi*, Edward J. Banigan, Yoori Kim, Hongtao Yu†, Xiao-chen Bai†, Ilya J. Finkelstein† (* co-first authors) († co-corresponding)

Molecular Cell, Vol. 83, Issue 16, Pages 2856–2871.e8, 2023

DOI: 10.1016/j.molcel.2023.07.006

---

Table of Contents

• Summary
• Introduction
• Results
• Discussion
• Limitations of the Study
• STAR+Methods
• Acknowledgments
• References

---

Summary

Cohesin and CCCTC-binding factor (CTCF) are key regulatory proteins of three-dimensional (3D) genome organization. Cohesin extrudes DNA loops that are anchored by CTCF in a polar orientation. Here, we present direct evidence that CTCF binding polarity controls cohesin-mediated DNA looping. Using single-molecule imaging, we demonstrate that a critical N-terminal motif of CTCF blocks cohesin translocation and DNA looping. The cryo-EM structure of the cohesin-CTCF complex reveals that this CTCF motif ahead of zinc fingers can only reach its binding site on the STAG1 cohesin subunit when the N terminus of CTCF faces cohesin. Remarkably, a C-terminally oriented CTCF accelerates DNA compaction by cohesin. DNA-bound Cas9 and Cas12a ribonucleoproteins are also polar cohesin barriers, indicating that stalling may be intrinsic to cohesin itself. Finally, we show that RNA-DNA hybrids (R-loops) block cohesin-mediated DNA compaction in vitro and are enriched with cohesin subunits in vivo, likely forming TAD boundaries.

---

Introduction

Higher eukaryotes fold their genomes into topologically associating domains (TADs).^1–5 DNA sequences within a TAD interact frequently with each other but are insulated from adjacent TADs. The cohesin complex, which is constituted of SMC1, SMC3, RAD21, and either STAG1 or STAG2, and CCCTC-binding factor (CTCF) are both enriched at TAD boundaries.^1–3,6–12 Depleting CTCF or cohesin disrupts chromosomal looping and insulation between most TADs.^13–17 CTCF defines TAD boundaries by blocking the loop extrusion activity of cohesin via an incompletely understood mechanism.^18,19 TADs are also established via CTCF-independent mechanisms, including transcription and replication activities that restrict cohesin loop extrusion.^20–23 The mechanisms underlying cohesin regulation at these roadblocks remain unclear. Here, we explore the mechanisms of CTCF-dependent and -independent cohesin arrest during loop extrusion to shape the three-dimensional (3D) genome.

CTCF arrests cohesin in an orientation-specific manner in most higher eukaryotes.^{10,11,24–26} TAD boundaries are marked by CTCF-binding sites (CBSs) in a convergent arrangement. Deleting genomic CBSs abrogates TAD boundaries^11,24,25 and induces aberrant gene activation.^27–29 An interaction between an N-terminal CTCF peptide with a Tyr-Asp-Phe (YDF) motif and cohesin STAG1/2 subunit is essential for polar cohesin arrest and for maintaining TAD boundaries in vivo.¹⁹ However, the mechanisms regulating polar cohesin arrest remain poorly explored due to the difficulty of reconstituting these biochemical activities for structure-function studies.

Topological boundaries are also established via non-CTCF mechanisms such as replication and transcription. Notably, CTCF demarcates <10% of TADs in fruit flies in an orientation-independent manner.^3,6,30,31 Fly TADs are depleted in active chromatin marks and separated by regions of active chromatin.³⁰ The minichromosome maintenance (MCM) complex can impede the formation of CTCF-anchored cohesin loops and TADs in a cell-cycle-specific manner.²³ Chromosome-bound RNA polymerases are also capable of acting as barriers to cohesin translocation both in human and yeast.^20,21 Moreover, transcribing RNA polymerases are not stationary; rather, they translocate and relocalize cohesin, which generates characteristic patterns of spatial organization around active genes.²⁰ Transcription products, like RNA-DNA loops (R-loops), are also postulated to reinforce TADs.²² Whether R-loops can interact with cohesin and regulate loop extrusion is unknown. These studies all point to the intriguing possibility that not only CTCF, but also additional proteins and DNA structures, organize our 3D genomes.

Here, we use a combination of single-molecule studies and cryo-electron microscopy (cryo-EM) to show that CTCF and R-loops both block cohesin-mediated loop extrusion. CTCF-binding polarity controls cohesin-mediated DNA looping. Cohesin that encounters the non-permissive CTCF N terminus is blocked from further translocation and loop extrusion. The cryo-EM structure of the intact cohesin-CTCF complex reveals that this CTCF motif ahead of zinc fingers (ZFs) can only reach its binding site on the STAG1 cohesin subunit when the N terminus of CTCF faces cohesin. Remarkably, a C-terminally oriented CTCF accelerates cohesin translocation, causing increased DNA compaction. This suggests that CTCF shapes the 3D genome even when positioned in a permissive orientation relative to cohesin. DNA-bound Cas9 and Cas12a ribonucleoproteins (RNPs) are also polar cohesin barriers, indicating that cohesin stalling is intrinsic to this DNA motor and may be triggered by diverse proteins and/or DNA structures. Finally, we show that RNA-DNA hybrids (R-loops) are enriched with cohesin subunits in vivo. R-loops form insulating boundaries in the absence of CTCF and efficiently block cohesin-mediated DNA compaction in vitro. These results provide the first direct evidence that CTCF orientation and R-loops shape the 3D genome by directly regulating cohesin.

---

Results

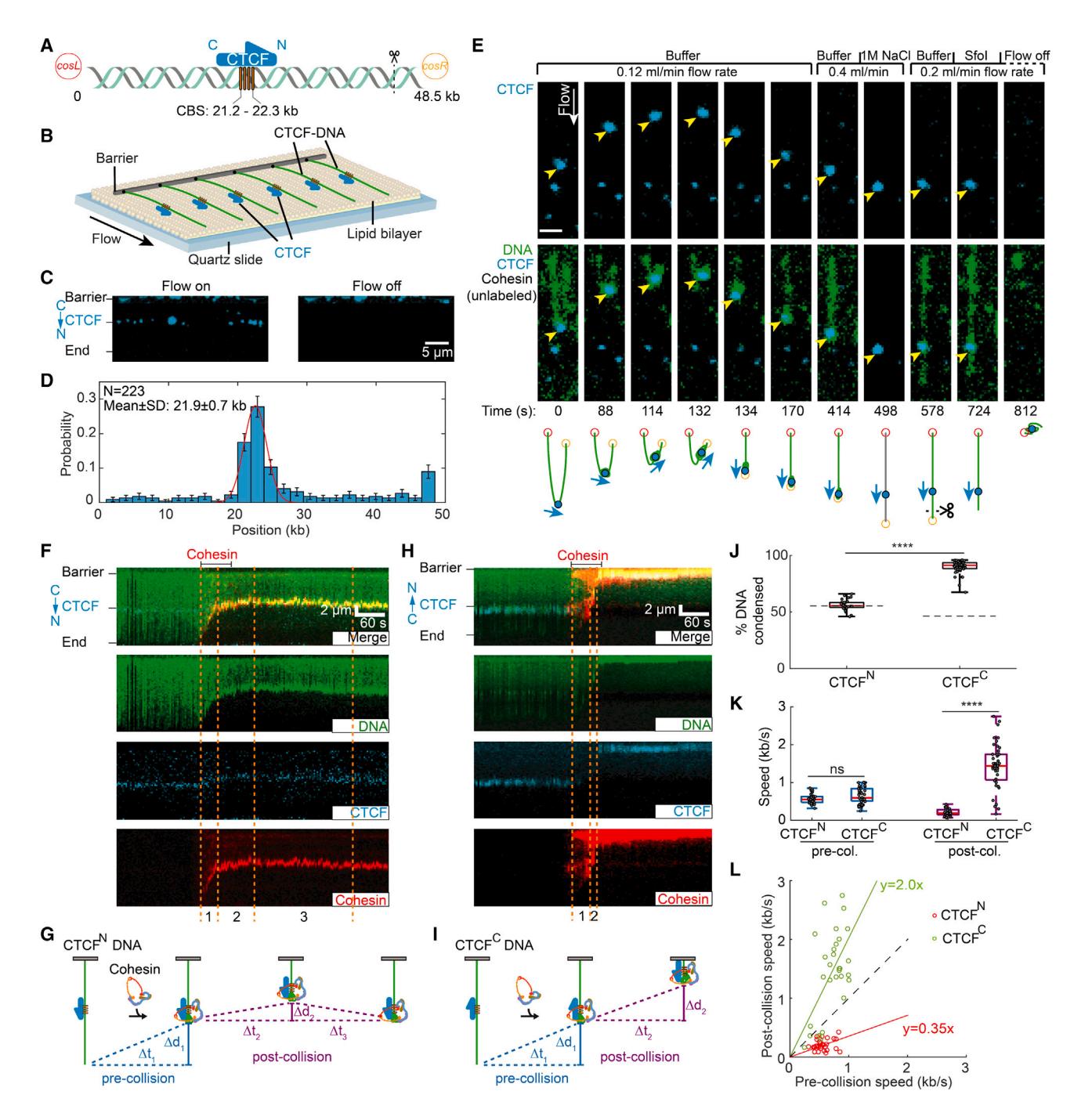

CTCF is a polar barrier to cohesin translocation on U-shaped DNA

We directly visualized cohesin-mediated looping and compaction of DNA bound with CTCF (Figure 1). CTCF assembles into clusters of 2–8 molecules on CBSs.^32,33 We reconstituted this arrangement by inserting four co-directional CBSs into a 48.5 kb DNA substrate (see STAR Methods).^34,35 These CTCF motifs position the CTCF N terminus toward the right side of the DNA substrate, termed cosR. Full-length CTCF purified with a C-terminal maltose-binding protein (MBP)-FLAG tag forms a stable complex with double-stranded DNA (dsDNA) (Figures S1A and S1B). We fluorescently labeled CTCF with Alexa 488-conjugated anti-FLAG antibodies. CTCF binding was visualized on aligned arrays of DNA molecules suspended above a lipid bilayer surface via total internal reflection fluorescence microscopy (Figures 1B and 1C; and see video data in STAR Methods).³⁶ Turning buffer flow off retracted both DNA and CTCF to the barrier, confirming that CTCF is bound to the DNA (Figure 1C). Nearly all CTCF molecules on DNA are bound to the CBSs (Figures 1C and 1D). The half-life of CTCF bound on the CBSs is 670 ± 60 s (t½ ± 95% confidence interval [CI]; n = 31), which is ~5.2-fold longer than its half-life on nonspecific DNA sites (Figure S1C). Fewer than four CBSs significantly reduced CTCF occupancy relative to non-specific DNA binding (Figure S1D). We estimate that the four CBSs bind 2 ± 1 (mean ± SD; n = 233) CTCF molecules, as indicated by the CTCF fluorescent intensity at the CBSs relative to the CTCF on nonspecific DNA (Figures S1E and S1F).

CTCF is a polar boundary for cohesin-mediated loop extrusion.^{10,11,25,37,38} Cohesin that encounters CTCF from its non-permissive, N-terminal side is proposed to stop extrusion. Whether encounters from the permissive, C-terminal side of CTCF (CTCF^C) can regulate cohesin is unknown. To determine how CTCF regulates cohesin, we directly observed loop extrusion on U-shaped CTCF-DNA. In these assays, both ends of the DNA substrate are biotinylated and tethered to the flowcell surface.^36,39 DNA is visualized via the intercalating dye SYTOX Orange. Alexa 488-labeled CTCF is injected into the flowcell before unlabeled cohesin-Nipped-B-like (NIPBL)^C (hereafter referred to as cohesin in all single-molecule experiments) in the imaging buffer (Figures 1E and S2; see video data in STAR Methods). After cohesin is added, a representative DNA molecule shows gradual compaction of its right arm, indicating cohesin-mediated DNA looping (Figure 1E).^36,40 Notably, the left arm of DNA is not compacted completely, suggesting that CTCF acts as a polar boundary to arrest cohesin. The right end of the molecule detached at 134 s, resulting in the linearization of the looped DNA molecule. While the left arm of the DNA was gradually extended, the right arm of the DNA stayed looped. This confirms cohesin-mediated looping of the right arm of the U-shaped DNA.

Since both ends of the U-shaped DNA substrate are biotinylated, these molecules are tethered with a random CBS orientation relative to the direction of cohesin translocation. We used in situ optical restriction enzyme mapping to determine the polarity of the CBSs. We first washed off cohesin by injecting a high-salt buffer at an increased flow rate (Figure 1E). After this stringent wash, CTCF remained bound at the target site, but DNA loop was disrupted, and DNA was re-extended. The restriction enzyme SfoI cuts at a single site 2.8 kb away from the cosR end (Figures 1A and S2A). When injected into the flowcell, SfoI cut the DNA molecule at what was formerly the right arm, indicating that this was the cosR side of the DNA substrate. Thus, cohesin compacted the cosR-proximal DNA arm and the encounter of cohesin with the CTCF N terminus arrested loop extrusion of the left DNA arm (Figures 1E, S2B, and S2C, blue arrows). Consistent with the random tethering of U-shaped DNAs, we observed that 58% (n = 42/72) of the molecules underwent complete compaction in both arms, as would be expected for a permissive CTCF-cohesin encounter (Figure S2D). The salt wash in Figure 1E indicates that cohesin remained bound to the CBS throughout DNA compaction. Furthermore, additional experiments on U-shaped DNA showed examples where cohesin compacted both arms of the U-shaped DNA without displacing CTCF from the CBS (Figure S2E). We also did not see CTCF displaced by cohesin from the CBS in any of the single-molecule experiments (n = 67). Overall, these experiments show that cohesin bypasses CTCF in the permissive orientation, but cannot displace CTCF from the CBS. These results suggest that CTCF acts as a boundary for cohesin-mediated DNA looping when the N terminus of CTCF is oriented toward cohesin.

CTCF can either block or accelerate cohesin translocation

We next used a three-color single-tethered DNA curtain assay to directly visualize how CTCF regulates cohesin translocation (Figure 1F). The DNA was tethered to the flowcell via a streptavidin-biotin linkage on either the cosL side (termed CTCF^N-DNA) or the cosR side (CTCF^C-DNA). The DNA, CTCF, and cohesin (via its STAG1 subunit) were labeled with different fluorophores that could be simultaneously imaged. Consistent with our prior observations, cohesin loads near the free DNA end and rapidly compacts the substrate.³⁶ Upon colliding with the N-terminal side of CTCF (CTCF^N), cohesin slowed drastically and translocated a few kb upstream of the CBS. The CTCF-cohesin complex then returned to the CBS, likely via force-induced dissipation of the DNA loop (Figures 1F and 1G; see video data in STAR Methods). All cohesin molecules stopped translocating after encountering CTCF^N (n = 32) (Figure 1J).

Collisions of cohesin with the CTCF^C produced drastically different results. Collisions with CTCF^C accelerated cohesin and compacted the entire DNA molecule (n = 51) (Figures 1I and 1J; see video data in STAR Methods). We compared cohesin translocation speeds before and after CTCF collisions in both orientations (Figure 1K). Before colliding with CTCF, cohesin speeds were indistinguishable in either CBS orientation (mean ± SD: 0.56 ± 0.13 kb s⁻¹ for cohesin-CTCF^N; 0.61 ± 0.21 kb s⁻¹ for cohesin-CTCF^C; N > 32 for both orientations). Non-permissive (CTCF^N) collisions slowed cohesin to a velocity of 0.2 ± 0.09 bp s⁻¹. Strikingly, permissive (CTCF^C) collisions increased the cohesin velocity to 1.42 ± 0.70 bp s⁻¹. This trend was also observed for changes in the velocity of individual molecules: non-permissive collisions slowed cohesin ~3-fold whereas permissive collisions accelerated it by ~2-fold (Figure 1L). We confirmed that wild-type (WT) CTCF that was not fluorescently labeled also blocked cohesin from the N-terminal side, indicating that this behavior is not induced by the fluorescent label (Figures S1G–S1J). Therefore, CTCF can arrest cohesin translocation when its N terminus is oriented toward cohesin. With its C terminus facing cohesin, CTCF accelerates cohesin after collision, possibly to reinforce domain boundaries.

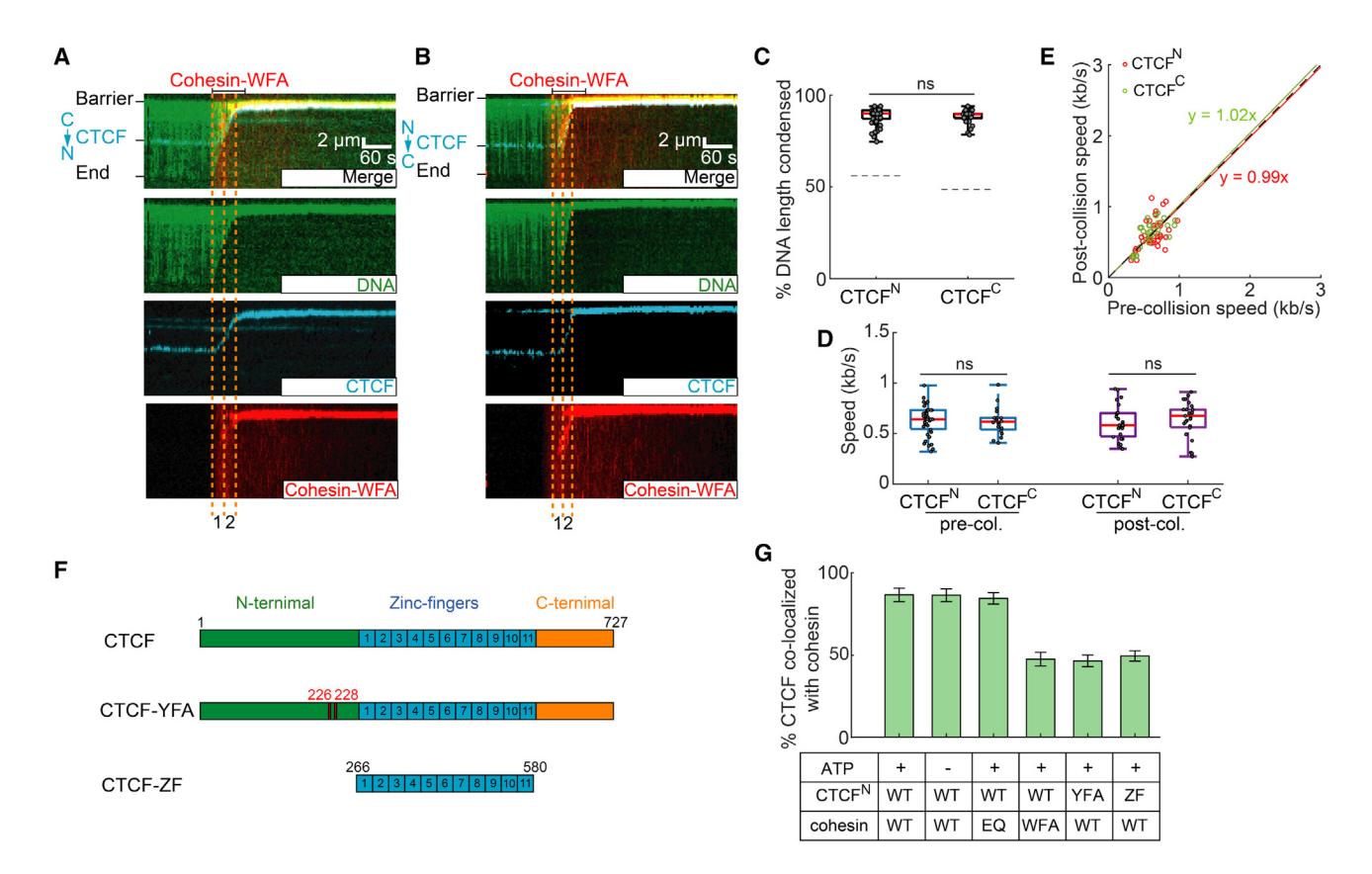

Polar cohesin arrest requires the unstructured CTCF N-terminal domain

CTCF physically interacts with the STAG2-RAD21 cohesin subcomplex through its conserved N-terminal YDF motif.^19,41,42 Cells with CTCF(Y226A/F228A) have fewer loops and weaker domain boundaries than WT CTCF.¹⁹ To determine whether this CTCF-cohesin interaction was required for blocking cohesin, we first characterized the ability of CTCF to arrest recombinant cohesin with STAG1(W337A/F347A; termed cohesin-WFA), which is deficient in binding the CTCF YDF motif¹⁹ (Figures 2A–2E). Cohesin-WFA did not stop after colliding with either CTCF^N or CTCF^C, and compacted DNA in both orientations (n = 66 and 30 for CTCF^N and CTCF^C, respectively). The pre- and post-collision velocities were also indistinguishable in either orientation (Figures 2D and 2E). We next tested CTCF(Y226A/F228A; CTCF-YFA) and a truncation mutant that only includes the 11 ZFs (CTCF-ZF) (Figure 2F). All CTCF mutants retained a high affinity for the CBS (Figures S3A and S3B). Strikingly, both CTCF-YFA (Figures S3C–S3G) and CTCF-ZF (Figures S3H–S3L) lost their functions as polar barriers of cohesin translocation. Thus, the interaction between STAG1 and the CTCF YDF motif is required for polar cohesin blockade.

CTCF-YFA and CTCF-ZF both reduced cohesin’s speed and DNA compaction in an orientation-independent manner (Figure S3). This observation suggests that other regions of CTCF, including the ZFs, can partially block cohesin. We thus quantified the physical interactions between cohesin and CTCF mutants. To capture potential interactions between cohesin and CTCF mutants without DNA compaction, we increased the applied laminar force to 0.7 pN. At this force, cohesin remains bound to the DNA but cannot translocate on it.³⁶ The vast majority of WT CTCF^N foci co-localized with cohesin (n = 338/380 molecules) (Figure 2G). This co-localization pattern was identical without ATP and with the ATP hydrolysis-deficient cohesin SMC1A(E1157Q)/SMC3(E1144Q) mutant (cohesin-EQ). In contrast, both CTCF^N-YFA and CTCF^N-ZF co-localized with less than ~50% of WT cohesin molecules (n = 150/333 and 195/397 for CTCF^N-YFA and CTCF^N-ZF, respectively) (Figure 2G). Only 47% (n = 105/224) of the WT CTCF^N foci retained cohesin-WFA. Switching the DNA orientation to CTCF^C resulted in a similar co-localization defect (Figure S3M). Thus, the CTCF YDF motif is required for strong cohesin-CTCF binding. However, CTCF also physically interacts with cohesin via an internal region.

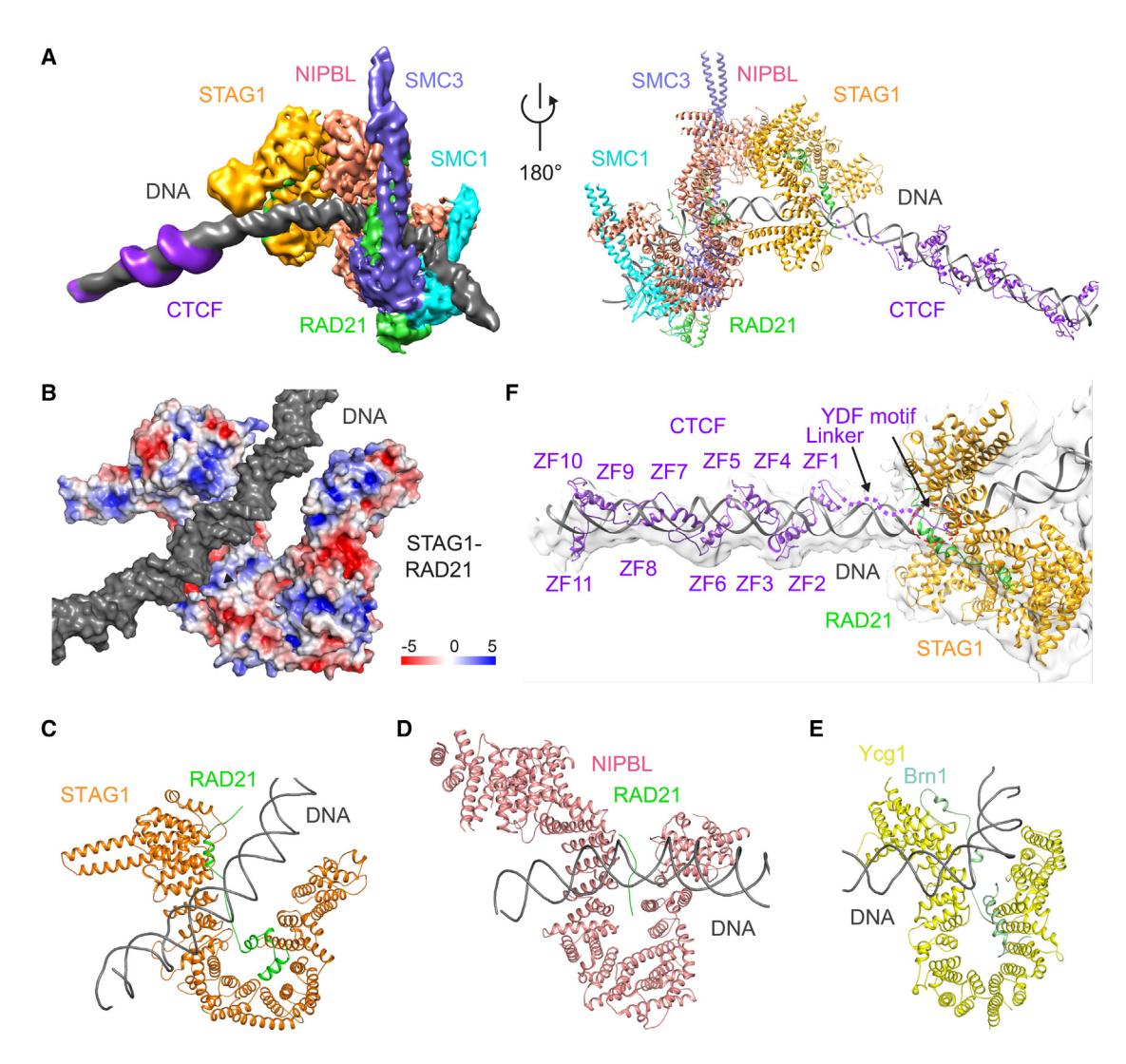

Structure of the cohesin-NIPBL^C-CTCF-DNA complex

To understand the mechanism by which CTCF blocks cohesin in an orientation-specific manner, we solved the structure of cohesin-NIPBL^C in complex with CTCF using cryo-EM. The complex was reconstituted on a 118-base pair (bp) dsDNA that included a 41-bp CBS at one end. Cohesin-NIPBL^C remained associated with CTCF-bound dsDNA in the presence of ADP·BeF₃ (Figures S4A and S4B). We further stabilized this complex via mild cross-linking with BS³ before sucrose gradient ultracentrifugation and single-particle cryo-EM analysis.

3D classification and refinement generated three cryo-EM maps of the complex in distinct conformations, only one of which contained one CTCF molecule bound to the cohesin-NIPBL-DNA complex (Figures S4C–S4I; Table S1). The map of this conformation had an overall resolution of 6.5 Å, which allowed unambiguous rigid-body docking of the models of cohesin-NIPBL and CTCF ZFs with DNA to produce the structure of the cohesin-NIPBL-CTCF-DNA complex^43–45 (Figures 3A and S4J). The CTCF N and C termini are predicted to be unstructured, and accordingly, are invisible in the map. Previous crystal structure showed that the YDF motif of CTCF interacts with STAG2 and RAD21.¹⁹ To visualize the density of YDF motif in our cryo-EM structure, we performed focused refinement on the STAG1-RAD21-CTCF-DNA part in three maps of the complex structures (Figures S4M–S4O). The density corresponding to the YDF motif is clearly present in two of the three maps of the complex (Figures S4M and S4N). Extra density that corresponds to the YDF motif is also present on the surface of STAG1-RAD21 in the map for cohesin-NIPBL-CTCF-DNA (Figure S4O), albeit the density is not as good as in the other two maps due to the limited resolution.

In the complex, one end of the DNA molecule is captured by SMC1-SMC3 heterodimer and NIPBL, similar to the cohesin-NIPBL-DNA complex without CTCF (Figure 3A).^43,46,47 The middle region of DNA is bound by STAG1 (Figure 3B). Previous studies have shown that the huntington, elongation factor 3, a subunit of protein phosphatase 2A and TOR1 (HEAT) repeat proteins of SMC complexes, including STAG1/2 in cohesin, NIPBL, and in chromosome-associated proteins (CAP) CAP-D and CAP-G (Ycg1 in yeast) in condensin, participate in DNA binding. Unlike NIPBL that contacts DNA via its left and right arms on one side of the U structure, STAG1 binds to DNA through both the bottom of the left arm and the tops of both arms (Figures 3C and 3D).⁴³ These DNA recognition regions in STAG1 are enriched in positively charged residues (Figure 3B). DNA traverses between the tops of the U-shaped STAG1, which is similar to the DNA-binding mode by yeast condensin subunit Ycg1 (Figure 3E).^48,49 However, STAG1 possesses a wider central cleft than Ycg1, resulting in a relatively loose binding of STAG1 to DNA, which might be an intrinsic property of cohesin. It is also possible that other unidentified factors can strengthen STAG1-DNA interactions at domain boundaries.

CTCF binds to the CBS at the other end of the DNA molecule, with its N terminus pointing toward cohesin. The structure thus captures the extrusion-blocking collision complex of cohesin-CTCF. The conserved YDF motif of CTCF binds to the previously characterized site on the STAG1-RAD21 subcomplex¹⁹ (Figure 3F). In addition to the N terminus, zinc finger 1 (ZF1) of CTCF contributes to cohesin positioning at CBSs, boundary insulation, and loop formation.^41,42,50,51 However, cohesin does not directly contact CTCF ZFs (Figures 3A and 3F). Thus, CTCF-ZF1 regulates cohesin via an indirect mechanism.

The YDF motif that directly binds STAG1 is conserved in CTCF proteins of various species, including Drosophila (Figure S5A). Yet, CTCF is not enriched at TAD boundaries and loop anchors in Drosophila,^52–54 suggesting that Drosophila CTCF cannot block cohesin. A sequence alignment of vertebrate CTCFs shows that the N-terminal region contains a patch of lysine residues close to ZF1 that may interact with DNA (Figure S5A). We also observed additional weak density adjacent to human CTCF ZFs on the surface of DNA in the locally refined maps (Figure 3F), indicating that this basic linker binds to DNA and may be important for blocking DNA compaction by cohesin. Interestingly, this basic linker is missing in Drosophila CTCF (Figure S5A), which could provide a possible explanation for the inability of Drosophila CTCF to stop cohesin. To demonstrate this possibility, we purified a chimeric CTCF with residues 261–264 replaced by the corresponding Drosophila melanogaster linker (CTCF-DM[251–264]) (Figure S5B). CTCF-DM(251–264) cannot block cohesin translocation compared with WT human CTCF (Figures S5C and S5D), indicating that the linker constitutes a key functional difference between human and fly CTCFs.

Polar arrest of cohesin by Cas9 and Cas12a ribonucleoproteins

To further probe the mechanism of cohesin arrest, we used S. pyogenes Cas9 as a model roadblock with a defined polarity. Nuclease-dead Cas9 (dCas9) RNP was reconstituted by mixing 3xFLAG-dCas9 with a single-guide RNA (sgRNA). The protospacer adjacent motif (PAM) of the sgRNA faces the cosR end of the target DNA strand (Figure 4A). As expected, the dCas9 RNP labeled with a fluorescent Alexa 488-anti-FLAG antibody bound to its DNA target (Figures 4B and 4C).⁵⁵ When the DNA is tethered via its cosL end, cohesin collides with dCas9 from its PAM-proximal side (named dCas9^Front) and when the DNA is tethered via its cosR end, cohesin encounters the PAM-distal side (dCas9^Back; see Figure 4A).

Cohesin compacts the DNA until it encounters dCas9 in either orientation. Strikingly, we observed different behaviors with dCas9^Front and dCas9^Back (Figures 4D and 4E; see video data in STAR Methods). dCas9^Front slowed cohesin ~3-fold relative to its pre-collision speed (0.61 ± 0.12 kb/s; n = 40) and eventually arrested cohesin at the collision site (Figures 4F and 4G). In contrast, collisions with dCas9^Back increased cohesin’s speed ~2.2-fold (1.52 ± 0.27 kb/s; n = 41) and led to nearly complete DNA compaction (Figures 4F–4H). Thus, dCas9 recapitulates the polar cohesin arrest and acceleration that we observed with CTCF (Figure 1). Our surprising finding that dCas9 arrests cohesin in a polar fashion explains a recent in vitro report that gold nanoparticle attached to dCas9-RNP only blocks 50% of cohesins.⁵⁶ This partial effect is likely due to the unresolved collision polarity in that study. More importantly, our results also explain how dCas9 establishes TADs in mammalian cells.⁵⁷

We next observed cohesin’s collisions with the nuclease-inactive Acidaminococcus sp. Cas12a (dCas12a) RNP. Cas12a and Cas9 are structurally and biochemically divergent RNA-guided nucleases. dCas12a recognizes its PAM on the 3′ side of the target DNA strand (the PAM-proximal side is named dCas12a^Front; the PAM-distal side is named dCas12a^Back; Figure S5E), which is opposite to dCas9 (Figure 4A). Fluorescently labeled dCas12a efficiently bound its target site (Figures S5F and S5G).⁵⁸ dCas12a slowed and eventually stopped cohesin but only when cohesin approached from the dCas12a^Front side (Figures S5H–S5L). Collisions with dCas12a^Back accelerated cohesin ~1.8-fold (n = 53). Similar to CTCF, the fluorescent label did not affect cohesin translocation in these assays (Figures S5M–S5R). To investigate whether a specific interaction in STAG1 is required for polar arrest by CRISPR nucleases, we performed additional experiments with cohesin-WFA (Figures S5S–S5X). As with WT complexes, cohesin-WFA is also arrested by dCas9^Front but not by dCas9^Back (Figures S5S–S5U). Similar results were observed for dCas12a (Figures S5V–S5X).

Together, although the mechanisms are different, CTCF, dCas9, and dCas12a can all arrest or accelerate cohesin, depending on the polarity of the encounter. Polar arrest is a general feature of cohesin’s translocation cycle that can be elicited by diverse roadblocks.

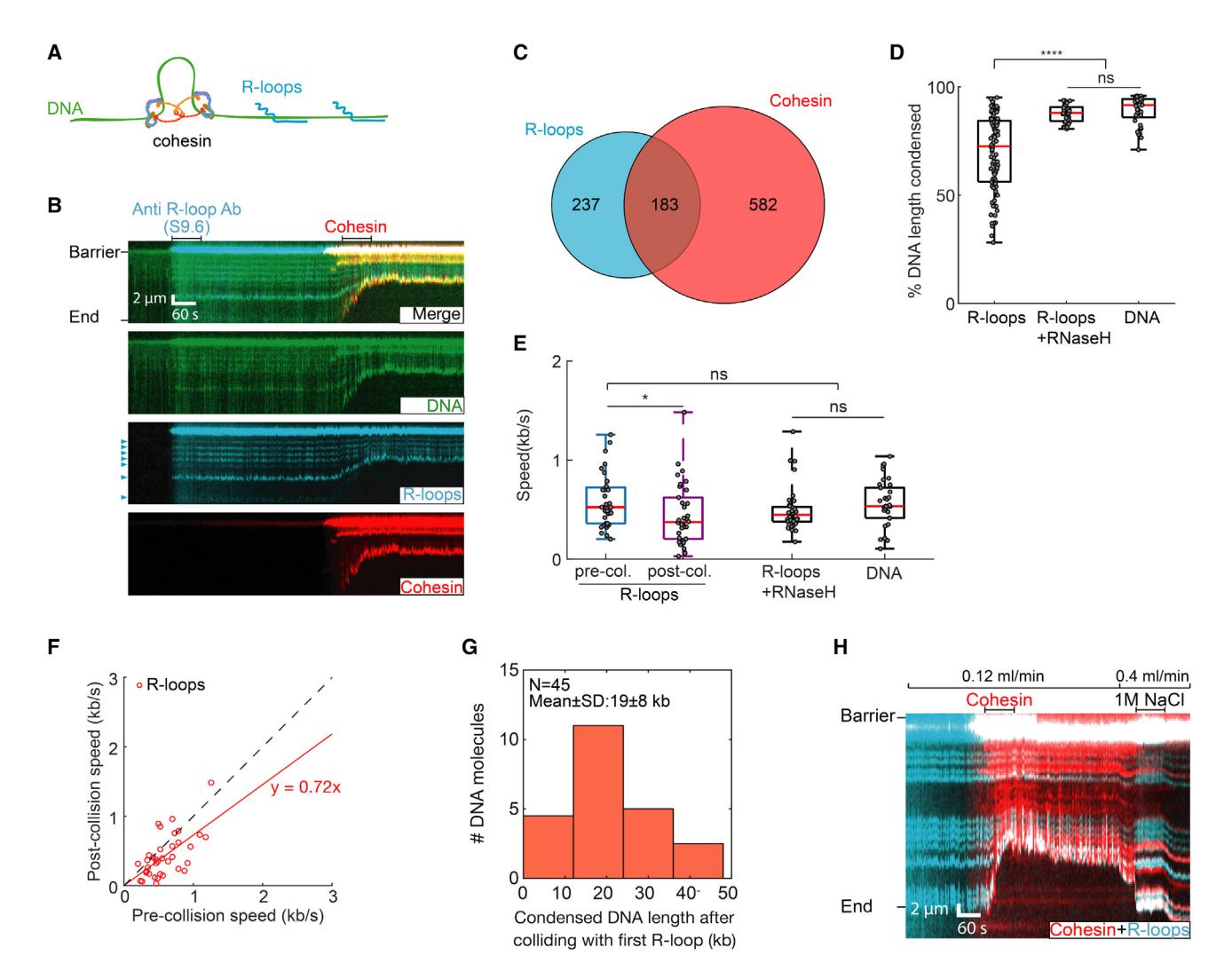

R-loops act as barriers to cohesin translocation

Target-bound Cas9 and Cas12a both form an RNA:DNA hybrid (R-loop) with a displaced single-stranded DNA. R-loops also form genome-wide during transcription via hybridization of the nascent transcript with the template DNA strand. Cohesin binds RNA via its STAG1/2 subunits in vitro,⁵⁹ and STAG1/2 proteins are enriched at R-loops in cells.⁶⁰ Moreover, apo-Cas9 doesn’t block cohesin translocation, suggesting that R-loops may impede cohesin directly.

We generated stable R-loops in vitro and observed their impact on cohesin translocation (Figure 5; see video data in STAR Methods). R-loops were assembled via concatemerization of a plasmid encoding the mouse Airn gene, followed by in vitro transcription and RNase A treatment (Figure S6A).^59,61 R-loops from the Airn gene are stable both in cells and in vitro.^59,61 The DNA concatemers varied in length from 17 to 110 kb (Figure S6B). Transcription did not appreciably change the distribution of DNA lengths (Figure S6C). We estimate 3 ± 2 R-loops per DNA molecule by fluorescently imaging these structures with the S9.6 antibody conjugated with Alexa 488 (Figures 5B and S6D). R-loops were separated by multiples of 4 kb, as expected for a DNA substrate that is generated via multicopy ligation of the same 4 kb long plasmid (Figure S6E). These DNA molecules were biotinylated and injected into the flowcell for single-molecule imaging. About 44% of the R-loops bound cohesin, confirming a physical interaction, likely with STAG1 (Figures 5C and S6F).⁵⁹ Cohesin did not fully compact DNA in the presence of R-loops and slowed ~0.7-fold (0.42 ± 0.31 kb/s; N = 37) (Figures 5D–5F). In contrast, cohesin completely compacted non-transcribed DNA or transcribed substrates that had been digested with RNase H to remove the R-loops (Figures 5D, S6G, and S6H). As expected, R-loop substrates that were pre-treated with RNase H did not slow cohesin (Figure 5E). We ruled out that the S9.6 antibody caused cohesin to stall by first imaging the R-loop collisions and then labeling R-loops after the experiment was complete (Figures S6I and S6J). We obtained similar results with both R-loop labeling approaches, indicating that R-loops indeed slow cohesin on their own. Cohesin stalled 19 ± 8 kb after colliding with the first R-loop (n = 45), indicating that a single encounter was insufficient to halt translocation. We estimate that complete cohesin arrest required 5 ± 2 R-loop collisions on average (Figures 5G and S6K). A stringent 1 M NaCl wash re-extended partially looped DNA molecules, but did not disrupt the tight cohesin-R-loop interaction (Figure 5H). In contrast, 1 M NaCl is sufficient to remove cohesin from naked DNA. Although we could not distinguish the direction of cohesin and R-loop collisions in these assays, our results indicate that multiple R-loops are sufficient to stall cohesin translocation in vitro, even in the absence of all transcription machinery.

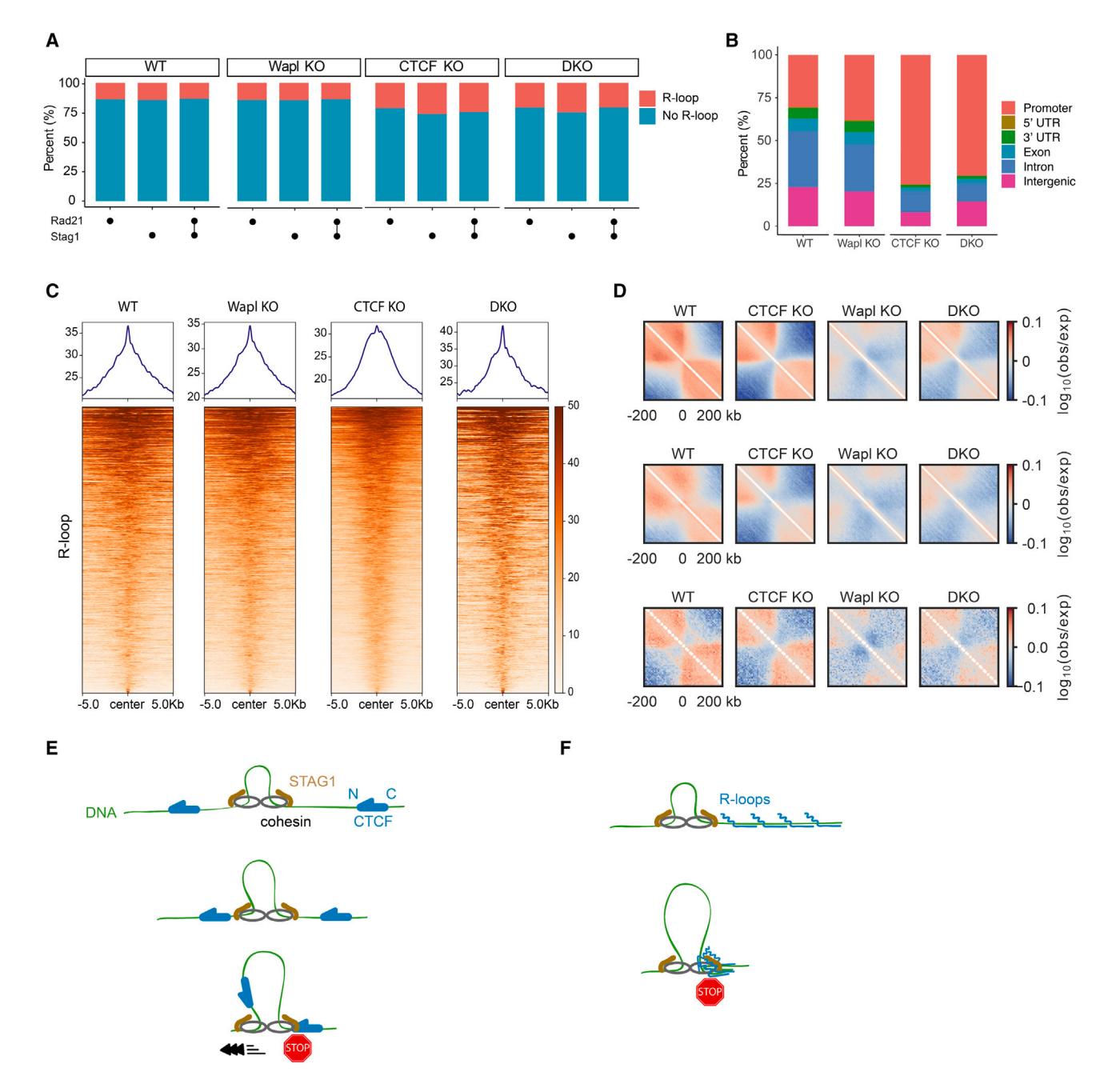

R-loops are enriched for cohesin complexes and insulate genomic contacts in cells

To test whether R-loops also act as cohesin barriers in cells, we analyzed published chromatin immunoprecipitation sequencing (ChIP-seq) and DNA-RNA immunoprecipitation sequencing (DRIP-seq) datasets in mouse embryonic fibroblasts (MEFs)^62,63 (Table S4). We analyzed chromatin localization patterns for the cohesin subunits Rad21 and Stag1 as proxies for the entire cohesin complex (Figure 6; Table S4). Peak overlaps were determined using the BEDTools suite with default parameters,⁶⁴ and they were deemed significant by BEDTools fisher, ChIPseeker and Genomic HyperBrowser (see STAR Methods; Table S5). Fifteen percent of cohesin subunit peaks overlap with R-loop peaks in WT MEFs (Figure 6A; Table S5). Overlaps between R-loops and Rad21 or Stag1 were nearly identical, indicating that these signals likely represent a complete cohesin complex. Knocking out the cohesin-release factor Wapl did not change the cohesin and R-loop overlap genome-wide. However, the cohesin-R-loop overlap increases to 26% in CTCF-depleted cells and CTCF/Wapl double-knockout (DKO) cells, suggesting that more cohesins interact with R-loops when CTCF is ablated. Cohesin and R-loop overlap is enriched at promoter and intronic regions, consistent with the pervasive presence of R-loops between the transcription start site (TSS) and the first exon-intron junction.⁶⁵ This enrichment is significantly enhanced in CTCF or CTCF/Wapl KO cell lines, indicating that R-loops provide a secondary signal for 3D genome organization (Figure 6B). To further confirm the significance of the overlap between cohesin and R-loop peaks, we mapped R-loop prevalence in a 5 kb region upstream/downstream of the cohesin-R-loop overlapped region. R-loops are prevalent around the cohesin-R-loop overlap region (Figure 6C) but not a few kb away from the overlaps. We also repeated this bioinformatic analysis for WT HeLa and K562 human cell lines, where both DRIP-seq and cohesin ChIP-seq datasets are publicly available.^63,66–68 Human cell lines also showed strong cohesin enrichment near R-loops, with the strongest enrichment at promoters and intron regions (Figures S6L–S6N; Tables S6 and S7). We conclude that cohesin and R-loops occupy the same genomic sites, and that R-loops are additional barriers for cohesin translocation in cells.

Next, we analyzed genomic contacts in the vicinity of R-loops using publicly available high-throughput chromosome conformation capture (Hi-C)²⁰ and DRIP-seq datasets in MEFs.⁶³ A map of chromosome contact enrichment averaged over and centered on oriented R-loops indicates that R-loops act as insulators for upstream and downstream contacts in WT MEFs (Figure 6D, top). Insulation at R-loops depends on cohesin since the enrichment of genomic contacts vanishes in Smc3 KO cells (Figure S6O). Knocking out CTCF somewhat increases the strength of the insulation, presumably because cohesin no longer accumulates at CTCF boundaries. When Wapl is depleted, R-loops are not insulating. This is likely because cohesin accumulates along the entire genome and has more time to traverse R-loops. A double CTCF and Wapl KO (DKO) partially restores insulation, further demonstrating that R-loops can help shape the 3D genome. Both R-loops and RNA polymerase are enriched at promoters, and RNA polymerase generates insulation through its interactions with cohesin,²⁰ partially confounding our analysis. To avoid the possible effects from non-R-loop factors in promoter regions, we piled up Hi-C maps centered on R-loops but excluded those that are found within 10 kb of a TSS (Figure 6D, middle). As an even more stringent analysis, we considered only intergenic regions while also excluding R-loops within 10 kb of a TSS (Figure 6D, bottom). These analyses confirm insulation near intergenic R-loops and R-loops away from TSSs, with a somewhat attenuated signal compared with the average over all R-loops. Taken together, the in vitro and in vivo analyses indicate that R-loops can act as barriers for cohesin translocation to shape the 3D genome.

---

Discussion

Here, we provide direct evidence that CTCF is a polar barrier to cohesin-mediated DNA loop extrusion. Our structure of the cohesin-NIPBL-CTCF-DNA complex represents the extrusion-arrested state. In this state, cohesin adopts a fully folded conformation, with STAG1/2 engaging the N-terminal YDF motif of CTCF. This arrangement strongly suggests that as cohesin translocates on DNA, STAG1/2 is positioned in the front end of the complex. When cohesin approaches the N terminus of CTCF, the YDF motif in the N-terminal region of CTCF can interact with STAG1/2, thus blocking cohesin translocation (Figures 6E and S6P). Our structure thus explains the molecular basis of the polar cohesin arrest by CTCF.

Cohesin translocation on DNA is accelerated when it first encounters the C terminus of CTCF (Figure 6F). Such acceleration further improves cohesin’s processivity and may be important for reinforcing domain boundaries in cells. This acceleration requires the interaction between STAG1/2 and the YDF motif of CTCF. However, the extrusion-arrested structure reported here suggests that the N-terminal CTCF linker, which directly contacts DNA region ahead of ZF-binding site, may not allow the YDF motif to reach STAG1/2 when cohesin approaches from the C terminus of CTCF (Figures S6Q and S6R). We speculate that CTCF might interact with STAG1/2 in an actively extruding cohesin-NIPBL complex and that this interaction further activates cohesin translocation. The molecular basis for the increased cohesin velocity is unclear. One possibility is that CTCF suppresses cohesin’s tendency to slip on DNA, especially at higher applied forces.^36,40 By directly interacting with STAG1/2, CTCF may act as a processivity factor that prevents microscopic cohesin slipping during its translocation cycle to reinforce cohesin’s loop extrusion at high tensions in mammalian cells. Additional structural and biochemical studies are needed to fully elucidate how cohesin extrudes loops and how CTCF reinforces this process.

Remarkably, both Cas9 and Cas12a RNPs can recapitulate polar cohesin arrest and acceleration, suggesting that CTCF is not unique in this regard. We only observed polar arrest/acceleration for the RNP but not the apo-Cas9/Cas12a complexes, suggesting that the protein-generated R-loop is important for this activity. Although cohesin has not evolved to interact with such RNPs in vivo, this result hints that S. pombe, S. cerevisiae, C. elegans, and A. thaliana may not need a CTCF homolog to organize their genomes. These organisms can form distinct chromatin domains reminiscent of TADs seen in humans.⁶⁹ Moreover, Drosophila CTCF performs fundamentally different functions from the human homolog, and its chromosome contact domains can form without stabilized point-to-point border interactions between CTCF sites.^31,70 Thus, cohesin must recognize additional CTCF-independent signals to form TADs, and these may include unidentified DNA-binding proteins or nucleic-acid structures. Even in human cells, some TAD boundary elements are not CTCF-dependent, suggesting that additional principles can also establish chromosome contact domains.¹⁰

While this paper was in revision, another group used a similar single-molecule imaging approach to demonstrate that CTCF blocks loop-extruding cohesin in an orientation-dependent manner.⁷¹ Notably, they reported that CTCF is an active regulator of cohesin-mediated loop extrusion that can be modulated by DNA tension. They did not observe significant changes in the rate of loop extrusion before and after cohesin-CTCF collision and found that dCas9 weakly arrests cohesin, which is contrary to other reports in vitro and in vivo.^56,57 The reasons for the discrepancies may be related to multiple differences between our studies. First, we co-purified the recombinant cohesin-NIPBL^C complex that was expressed in insect cells. In contrast, Davidson et al. used both HeLa and insect cells to express cohesin and NIPBL-MAU2 subcomplexes. In that study, cohesin and NIPBL-MAU2 were preincubated at various ratios right before injecting into the flowcell. We also used 48 kb long DNA substrates with four CBSs, whereas the second study only had a single CBS on a much shorter DNA molecule. Finally, the experiments described herein are primarily from single-tethered DNA molecules, whereas the second study observed cohesin translocation on double-tethered DNA experiments. When both ends of the DNA are tethered, tension accumulates because of cohesin looping as opposed to the constant application of buffer flow. Additional studies will be required to dissect the mechanistic details that lead to these small discrepancies, as well as to the mechanisms of cohesin arrest by other roadblocks.

Here, we show that R-loops can arrest cohesin, and that cohesin is enriched at R-loops in vivo. Our in vivo co-localization and Hi-C analyses are correlative and cannot rule out an indirect mechanism for R-loop-associated cohesin and contact enrichment, possibly via RNA polymerase-mediated insulation at these sites. Future experiments will be required to directly test this hypothesis. Additional evidence for the importance of R-loops includes the formation of fine-scale chromatin loops connecting the promoter, the enhancer, and downstream exon regions soon after induction of transcription.⁷² Interestingly, RNase H1 destroys these formed loops and eliminates cohesin binding to these sites, suggesting that these chromatin loops depend on R-loops and cohesin. Moreover, accumulation of RNA-DNA hybrids flanking CBSs decreases CTCF binding to CBSs in DIS3 deficient B cells and disorganizes cohesin localization, negatively impacting the integrity of the TAD containing the immunoglobulin heavy-chain (Igh) locus.⁷³ Active transcription also limits cohesin-mediated loop extrusion during recombination-activating gene (RAG) scanning.⁵⁷ We conclude that R-loops can arrest cohesin-catalyzed DNA looping both in vitro and in vivo with broad implications for the roles of R-loops and other roadblocks in shaping 3D genome organization in cells.

---

Limitations of the Study

The optical resolution of the fluorescence microscope used in these studies is constrained by the diffraction limit and the Brownian motion of the DNA and protein particles. This limits our ability to see the molecular details of how cohesin interacts with roadblocks with nanometer precision. The DNA molecules are stretched by the application of buffer flow (0.2 pN of applied force). This extends the DNA such that it can be imaged but can affect cohesin and CTCF.⁷¹ In the cell, cohesin moves on a highly chromatinized DNA that also includes both R-loops, CTCF, and a plethora of other DNA-binding proteins and RNA molecules. Biochemical reconstitutions can only capture a small subset of these interactions in a purified system. We determined the structure of the cohesin complex stalled by CTCF on DNA. In our structures, STAG1 binding is highly flexible. Recent studies suggest that the acetyltransferase ESCO1 and the HEAT repeat protein PDS5 are required for the formation of loops and the maintenance of the convergent rules of CBSs.^17,74,75 Future work will explore how these factors interact with cohesin and CTCF at TAD boundaries and thus contribute to loop formation.

---

STAR+Methods

Detailed methods are provided in the online version of this paper and include the following:

• KEY RESOURCES TABLE
• RESOURCE AVAILABILITY
  • Lead contact
  • Materials availability
  • Data and code availability
• EXPERIMENTAL MODEL AND STUDY PARTICIPANT DETAILS
  • Bacterial strains
  • Insect cell lines
  • FreeStyle 293-F cell culture
• METHOD DETAILS
  • Protein expression and purification
  • Recombineering lambda DNA containing CTCF binding sites
  • Single-molecule fluorescence microscopy
  • Cryo-electron microscopy
• QUANTIFICATION AND STATISTICAL ANALYSIS
  • Fluorescent image analysis
  • ChIP-seq and DRIP-seq analysis
  • Hi-C analysis

---
